Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: IGERCN or OEM
  • Model Number: HGZN-TS001
  • Type: Tabletop Socket
  • Grounding: Standard Grounding
  • Rated Voltage: AC 110-250V
  • Rated Current: 30A
  • Application: Industrial
  • Motorized pop up socket: Domotica pop up socket

Packaging & Delivery

Packaging Details 6PCS/CTN,
inner box :42.5*22*22CM
G.W:2.5KGS/PC
carton box :69*46*45CM
G.W:16.3KGS/CTN
Delivery Time 20days,after received 30%deposit





Product Descriptio



  The intelligent automation pop up socket

                 Operating instruction

Dear customer, thank you sincerely for you selection of the product. In order to facilitate the installation and used of you. Please reading the instruction carefully before use.



The Scope of Application:

The products wildly used for the office desktop ,the platform,the conference room,the kitchen table,the multi platform,E.T.C.



The Method of use:

 At first to long press the round button in the middle for 3seconds, the Full automatic control system will be electrified; the second to waiting for the LED lights flashing stopped, Light press the middle button, hidden socket box automatically rising; when

You have been finished used the power and Want to recover the socket box,you just light press the middle button;If you do not wish to use again, you just to long press the

Round button for 3seconds,and the elevator control system will be closed.



 The main feature:

1.The electricity  protection function:

  In product rising have design for 3 seconds electricity function which to long press the round button for 3seconds, the Full automatic control system will be electrified;Effectively protect for Accidentally touch of the products caused by frequent lifting and lowering.

There are Better to protect the safety of children.



2. The LED lighting design:

   The products is on the opening for used condition, the ring LED light will be opening;the products is on close, the ring LED light will be off.

  The Button lights, work design is normally open state by default, it is need to long press the round button in the middle for 3seconds later, the button light will be off.

 3. The anti-pinch function

   When the is on recover level, there are any items in the interval, the socket can be stop for 3seconds later, it is can be back up automation.

4. The anti-collision function:

   When the is on rising level, there are any items in the interval, the socket can be stop for 3seconds later, it is can be back down automation.

 5. The one key design:

  The open and close at will, let a personal home furnishing environment safer, more

Perfect vision.

6. IP44 waterproof design:

   The structure design is solve the problems which not in the close sate to cause the leakage danger of moisture.



7.Arbitrary combinations:

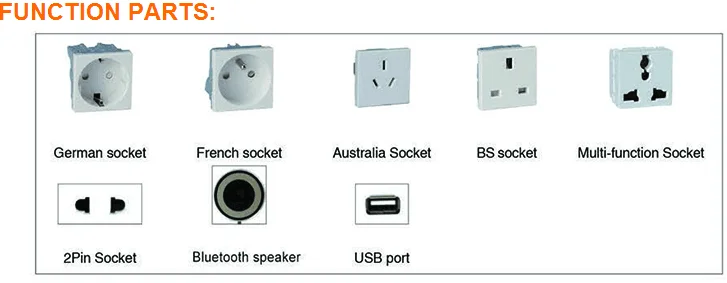

  It is can be according to the customer requirements, choose a variety of socket combination(3pieces of dimensions is 45X45MM)

8. With USB charging function:

  The products is with 5V power supply, equipped with USB interface for mobile phone charging.



Specifications:



 Rated voltage:110V~220V



 Rated power: 50/60HZ



 Rated current: 20A



 Shell: made of aluminum alloy



 Overall dimensions:340*120MM

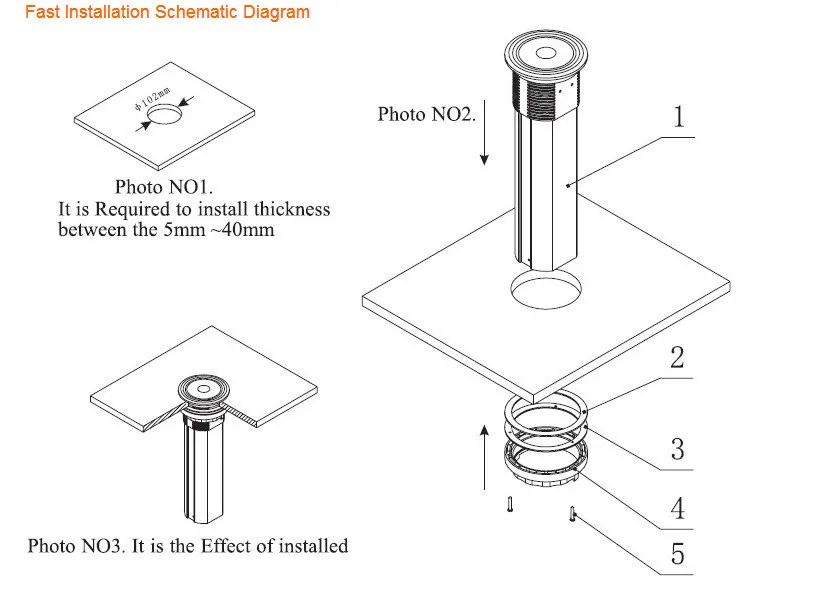

Opening holes: 102MM





CE CERTIFICATES OF MOTORIZED POP UP SOCKET:

























Company Information

About us:

1)our factory is more than 3000square meters large

2)we have more than 150 workers &10 RD engineer, and more than 12years of manufacture

    and pressional design experience

3)we have formed 3 production lines

4)capacity of our factory is 8000PCS/month

5)our products have IS9001,TUV,UL,CE and Test report,warranty:5years.

6)we have attend Canton fair of guangzhou,china,Dubai fair,Germany fair,Russia fair,poland fair.



1.we rely on our alibaba, reputation and customer statisfaction



 to succeed ,therefore, your feedback is extremely important to us .



 if you get satisfied with our goods and service.we are care about our valued customers and will always try to help you.







2.please give us the opportunity to resolve any problem, we understand the concern and frustrations that You might have, and we will try our best to resolve the issues.





3.please email us before leaving any negative feedback or opening any dispute, on site, we will be help you to resolve the problems.



Attitude and service:

1.to purchase products, please read the technical data careful, and following direction of manual operations.



2.we use TNT express, TNT disacount favorable, the buyer is very cost effective .



3.we will check carefull before shipping the products, such as packing,quality.





FAQ for intelligent automation lifting socket

Q1, Can you use our brand (Customer's brand)?

A:Sure,we can print your brand in products. ODM&OEM are both accept . we cares long term customer highly. Ok to follow customer's brand.

Q2. What's your biggest advantage ?

A:An excellent cost control system has been established in our factory. You can get more profits when cooperate with you.

Q3. How's the delivery time ?

A:Depend on your quantity, normally, 12-25 days for production. But if you are urgent, can be 10days days earlier.

Q4, How's the transport ?

A:we have professional document operator and forwarder, give you the best price and service.
